12 Fluid Heads for Every Budget – from $100 to $30,000

One of the most critical components of any camera system is tripod. It has two parts – the tripod legs and the fluid head. Both are equally important, and must join along with a camera rig as one happy ménage à trois.

In this article I will highlight 11 fluid head options for every budget, from $100 to $5,000+.

Important criteria to select a fluid head

I am assuming most filmmakers will have two weight needs – a low-weight option (mirrorless camera+lens) and one full-rig option (cinema camera+cine lens).

You almost always never buy a tripod for one camera+lens combination. A good fluid head tripod system will last you at least 3-4 cameras, and its utility is measured in decades. For this reason, before purchasing a fluid head tripod system, you must consider the following:

• Budget
• Current lowest weight of your rig, and what kinds of cameras you’d like to work with in the future – this determines your lowest payload.
• Current maximum weight expectation, and how future cameras will be affected – this determines your maximum payload.
• The base – you have two main options – bowl or flat base
• The weight of the fluid head – if you travel and hike a lot, this is an important consideration.

I will discuss tripod legs in another article. In this article I’ll focus on fluid heads.

An important aspect I want to expand upon is the base. As far as I’m concerned, you can manage with either a bowl or a flat base design, and both have advantages and disadvantages. However, if you’re a fast shooter and need to move to various setups quickly, I highly recommend the bowl base.

Here are some very good reasons to go bowl:

• Quick leveling by adjusting just one screw
• Can take higher loads while doing the above

The negatives are:

• It adds to the height and weight of the fluid head
• You always have to find a matching tripod and/or bowl adapter for various other uses like high-hats, jibs, etc.

What makes a good fluid head?

In brief:

• It must be a TRUE fluid head, and not a friction head, though this is hard to do at low budgets.
• It must offer a camera plate that allows you to balance your camera. A quick release mechanism is a must, except for really heavy cameras (which we’re not considering, as they are a dying breed).
• It must allow for counterbalance with fine steps (doesn’t matter if it’s continuous or stepped), enough to make your life easy.
• It must allow for drag control in both pan and tilt, from really smooth to ‘stiff’ – whatever your needs are.
• Obviously, it must not have any major backlash, jerks, loose joints, noise, play, etc.
• Must be rugged and well-built, and can take any weather you’re going to throw at it.
• It must offer a 360º pan rotation.
• It must offer a 90º tilt rotation in both directions if possible.
• Must have a tilt and pan lock.
• It must have as low a counterbalance weight as possible. Zero kg would be great. The maximum would be payload capacity.
• It must have an illuminated level bubble.

I go into a lot more detail in this video and article:

https://website-39341349.tnb.awf.mybluehost.me/scg-t8-fluid-head-review/

All said and done, a fluid head is only as good as its operator. There is really no perfect system. A head that might be the perfect choice for one might be a nightmare for another. We all have different body structures and skills, and the only real way to know which is to test it firsthand. Therefore:

Never buy a fluid head without testing it!

With that being said, let’s look at eleven fluid head options, starting from the cheapest.

Important: Prices and specs might be inaccurate or wrong. Please refer to manufacturers’ websites for correct information.

If you’re starting out, and you have a sub-$1,000 mirrorless camera and a couple of lenses, then you obviously won’t be looking to spend a lot on a fluid head. You should, but maybe nobody told you your tripod is as important as your camera. You won’t believe them even if they did.

Here’s a wise rule of thumb about tripods:

Your tripod system must be equal to the price of your camera.

I made that up, but it’s true for some strange reason. In any case, I do not recommend the following fluid head, except as a starter for noobs. Spend as less as possible, and save up for a really good one.

Here it is:

1 The $100 fluid head:
The Manfrotto MVH500AH

Here are the specs of the Manfrottro MVH5000AH (Amazon, B&H):

Feature	Manfrotto MVH500AH
Tilt Range (degrees)	-70/+90
Plate Size/Range	120mm/100mm
Bowl Size	60mm
Temperature Range (Celsius)	-20 to 60 C
Lowest Weight	N/A
Highest Weight	5 kg
Weight of head	0.9 kg
Counterbalance steps	Fixed (Counterbalance weight 2.4 kg)
Pan steps	Fixed
Tilt steps	Fixed
Bubble level	1
Quick release system	Yes, Top Load/sliding plate, side lock, Anti-rotation pin
Pan Range (degrees)	360
Warranty/Returns	6 month/10-year Registration warranty

The Manfrottro MVH5000AH (Amazon, B&H) is specifically designed for DSLR and mirrorless cameras. This fluid head can hold up to 5 kg.

You get what you pay for. It has a fixed counterbalance at 2.4 kg. The pan and tilt drags are fixed with fluid cartridges. It has a sliding plate that can be loaded from above with a side lock, and can be tightened with an anti-rotation pin.

The whole idea of owning a fluid head is to have the ability to perform repeatable moves without problems, in any condition, for years. Don’t be under the illusion that this will do it. The Manfrottro MVH5000AH (Amazon, B&H) is just a beginner-level fluid head, and I’m not going to pretend otherwise.

Next up:

2 The $600 fluid head:
Sachtler Ace XL

Here are the specs of the Sachtler Ace XL (Amazon, B&H):

Feature	Sachtler Ace XL
Tilt Range (Degree)	-75/+90
Plate Size/Range	104mm
Bowl Size (Diameter)	75mm
Temperature Range (Celsius)	-30 to 60 C
Lowest Weight	2 kg
Highest Weight	8 kg
Weight of head	1.7 kg
Counterbalance steps	8
Pan steps	3 + 0
Tilt steps	3 + 0
Bubble level	Illuminated
Quick release system	Sachtler, Side load
Pan Range (Degree)	360
Warranty/Returns	2-year warranty

The Sachtler Ace XL (Amazon, B&H) has a ball head and an integrated flat bottom. It is compatible with cine cameras and larger DSLR and mirrorless cameras.

It has an 8-step counterbalance and can load up to 8 kg. Having a step based counterbalance has a benefit of saving time to adjust and balance quickly, if you know the weight of your rig beforehand.

I realize when you’re new the price of this head might seem steep, but I assure you, I don’t consider anything less a good-enough option.

For the solo filmmaker it’s a great start, and if you have the money, go for this one to understand how fluid heads are supposed to work.

3 The $800 fluid head:
Cartoni Focus 8

Here are the specs of the Cartoni Focus 8 (Amazon, B&H):

Feature	Cartoni Focus 8
Tilt Range (Degree)	+/-90
Plate Size/Range	N/A
Bowl Size (Diameter)	75mm
Temperature Range (Celsius)	-40 to 60 C
Lowest Weight	0 kg
Highest Weight	8 kg
Weight of head	1.8 kg
Counterbalance steps	Continuous
Pan steps	Fluid, Continuous
Tilt steps	Fluid, Continuous
Bubble level	Illuminated
Quick release system	Sachtler, Manfrotto standard, slide load
Pan Range (Degree)	360
Warranty/Returns	5-year warranty on registration

The Cartoni Focus 8 (Amazon, B&H) has a 75mm bowl base and has a load range from 0 to 8 kg. The quick release system is compatible with both Sachtler and Manfrotto. It has independent pan and tilt locks.

The Cartoni Focus 8 fluid head delivers the performance of heads worth twice or thrice its price. Also, you can counterbalance from 0 kg, have a full 90º tilt range, have continuous adjustments for both counterbalance, pan and tilt drags.

And, it only weighs 1.8 kg!

It is important to have a counterbalance setting that goes to 0 kg because a light-weight camera and lens might weigh less than 1 kg (2.2 lbs). If the fluid head can’t take this low weight you will always be fighting its counterbalance. Many people miss this fact, and many manufacturers don’t mention it, hoping you won’t find out.

The Cartoni Focus 8 (Amazon, B&H) would be my first ‘long-term’ investment fluid head.

4 The $1,000 fluid head:
Cartoni Focus 10

Here are the specs of the Cartoni Focus 10:

Feature	Cartoni Focus 10
Tilt Range (Degree)	+/-90
Plate Size/Range	N/A
Bowl Size (Diameter)	100mm
Temperature Range (Celsius)	-40 to 60 C
Lowest Weight	0 kg
Highest Weight	11 kg
Weight of head	2 kg
Counterbalance steps	Continuous
Pan steps	Fluid, Continuous
Tilt steps	Fluid, Continuous
Bubble level	Illuminated
Quick release system	slide load
Pan Range (Degree)	360
Warranty/Returns	5-year warranty on registration

The Cartoni Focus 10 weighs 2 kg and has a 100mm bowl base. It can load the maximum weight of 11 kg and goes as low as 0 kg. It has a continuous counterbalance and fluid drags. The Cartoni Focus 10 has an independent tilt and pan drag. The pan drag also has a larger ring and has a red colored lever lock.

The fluid head is the elder sibling of the Cartoni Focus 8 with the ability to hold more weight and has a bigger bowl size. You really cannot go wrong with this one.

5 The $1,500 fluid head:
Cartoni Focus 12

Here are the specs of the Cartoni Focus 12:

Feature	Cartoni Focus 12
Tilt Range (Degree)	+/-90
Plate Size/Range	N/A (Euro Plate)
Bowl Size (Diameter)	100mm
Temperature Range (Celsius)	-40 to 60 C
Lowest Weight	0 kg
Highest Weight	12 kg
Weight of head	2.5 kg
Counterbalance steps	Continuous
Pan steps	Fluid, Continuous
Tilt steps	Fluid, Continuous
Bubble level	Illuminated
Quick release system	Sachtler Touch-and-Go 16, Slide load
Pan Range (Degree)	360
Warranty/Returns	5-year warranty on registration

Notes:

The Cartoni Focus 12 has a 100mm bowl base and weighs around 2.5kg. It can load weight up to 12 kg with a lower limit of 0 kg. It has a continuous counterbalance system, and tilt and pan drags, too.

This fluid head has 127 parts and they are claimed to be assembled by hand in Italy. It has a universal plate system like the Sachtler Touch-and-Go 16. This fluid head is made of a sophisticated non-metal which is stronger than aluminum.

If you were looking for a solid professional fluid head, I would definitely take a strong look at the Cartoni Focus 12.

6 The $2,500 fluid head:

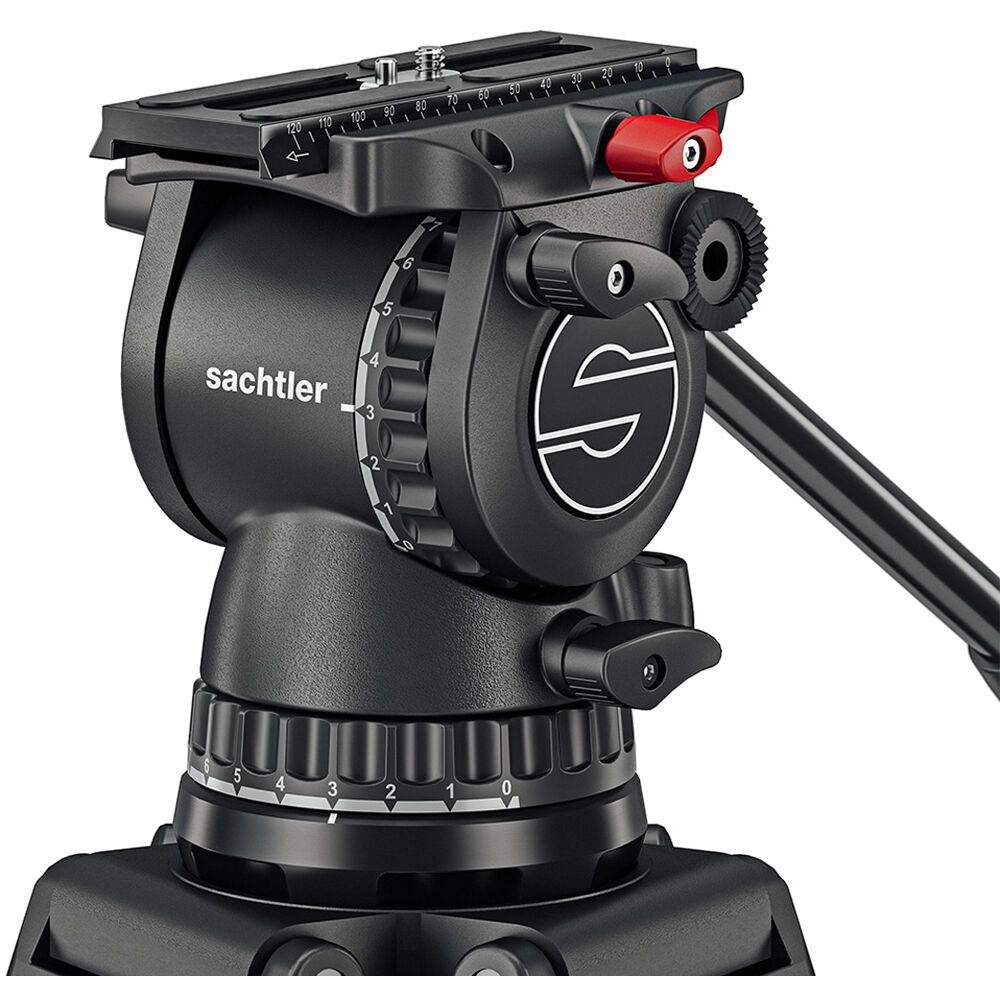

Sachtler FSB 10 Mark II

Here are the specs of the Sachtler FSB 10 Mark II:

Feature	Sachtler FSB 10 Mark II
Tilt Range (Degree)	-70/+90
Plate Size/Range	120mm
Bowl Size (Diameter)	100mm
Temperature Range (Celsius)	-40 to 60 C
Lowest Weight	0 kg
Highest Weight	12 kg
Weight of head	2.7 kg
Counterbalance steps	15 + 0
Pan steps	N/A
Tilt steps	7 + 0
Bubble level	Prism, Illuminated
Quick release system	Slide load
Pan Range (Degree)	360
Warranty/Returns	2-year warranty on registration

FSB stands for fluid, smooth and balance.

The Sachtler FSB 10 Mark II weighs about 2.7 kg and can load rigs that weighs around 12 kg. It has a 100mm bowl with an integrated flat base, which mounts the head with either a bowl or a flat base fitting. fluid, smooth and balance

The counterbalance function is 15 steps. Having more steps makes counterbalance fast and repetitive. If the Cartoni continuous counterbalance is not your thing, then the Sachtler FSB 10 Mark II is what you should look at. You pay extra for the Sachtler brand.

7 The $3,000 fluid head:

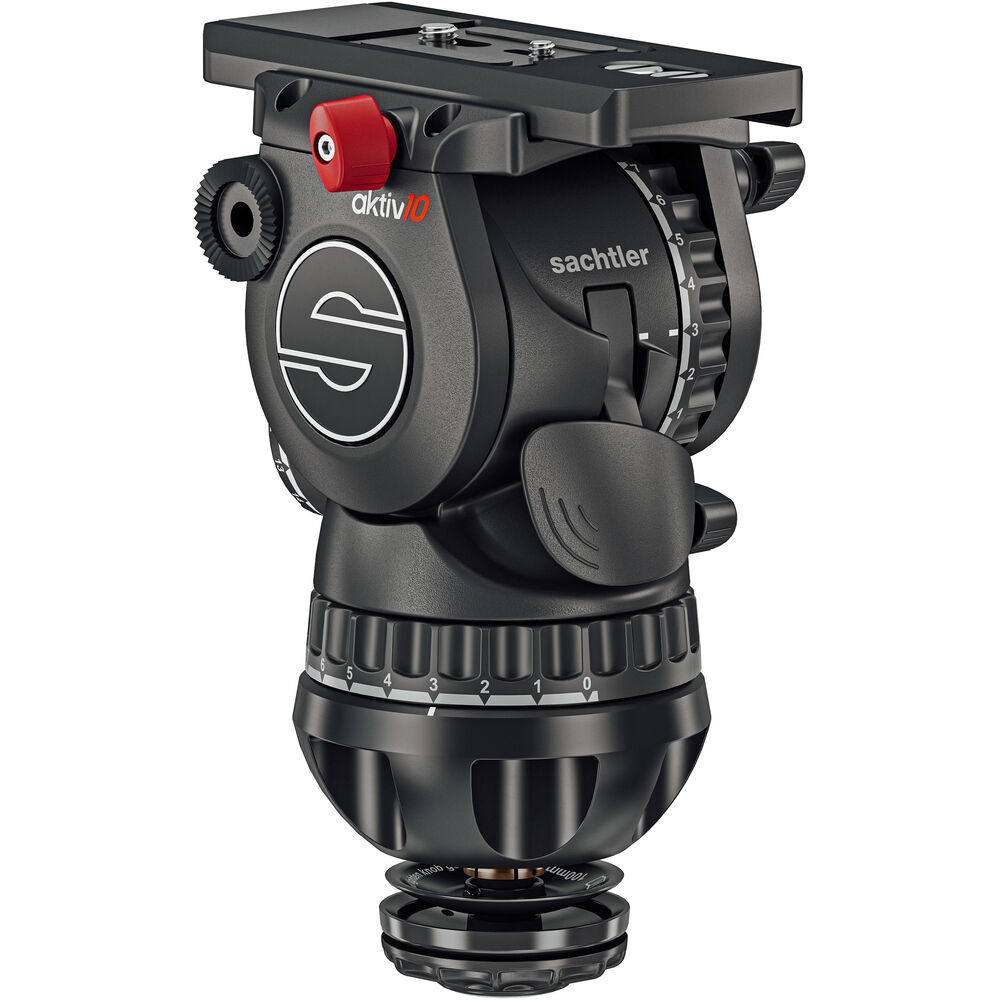

Sachtler aktiv10T Touch & Go

Here are the specs of the Sachtler aktiv10T Touch & Go:

Feature	Sachtler aktiv10T Touch & Go
Tilt Range (Degree)	-70/+90
Plate Size/Range	60mm
Bowl Size (Diameter)	100mm
Temperature Range (Celsius)	-40 to 60 C
Lowest Weight	0 kg
Highest Weight	12 kg
Weight of head	3 kg
Counterbalance steps	15 + 0
Pan steps	7 + 0
Tilt steps	7 + 0
Bubble level	Prism, Illuminated
Quick release system	Touch and Go
Pan Range (Degree)	360
Warranty/Returns	2-year warranty on registration

Sachtler is one of the great names in the tripod industry. The Sachtler aktiv10T Touch & Go is a newer model (the FSB is older) and has a bowl size of 100mm with 15 counterbalance steps. It weighs around 3 kg and the fluid head can hold weight from 0 to 12 kg.

The Sachtler aktiv10T Touch & Go has a unique feature SpeedLevel technology that makes the camera rig to mount and level instantly without stressing. Touch-and-G0 quick release system is another feature that locks and unlocks the plate in an instant.

It’s as good a reason as any to spend more for the Sachtler aktiv10T Touch & Go.

8 The $4,500 fluid head:
Sachtler aktiv12T Touch & Go

Here are the specs of the Sachtler aktiv12T Touch & Go:

Feature	Sachtler aktiv12T Touch & Go
Tilt Range (Degree)	-70/+90
Plate Size/Range	70mm
Bowl Size (Diameter)	100mm
Temperature Range (Celsius)	-40 to 60 C
Lowest Weight	0 kg
Highest Weight	14 kg
Weight of head	3.3 kg
Counterbalance steps	15 + 0
Pan steps	7 + 0
Tilt steps	7 + 0
Bubble level	Prism, Illuminated
Quick release system	Slide load
Pan Range (Degree)	360
Warranty/Returns	2-year warranty on registration

The Sachtler aktiv12T Touch & Go also has a 100mm ball head and is a step up from the aktive10. You get a higher weight capacity.

It weighs about 3.3 kg and can carry 0 to 14 kg. It has a continuous counterbalance and 7 + 0 tilt and pan drags. It also has a Touch-and-Go Plate with sliding quick release system and independent tilt and pan lock.

The Sachtler aktiv12T Touch & Go is compatible with all Sachtler 100 mm tripods (except the HotPod).

9 The $5,000 fluid head:
Cartoni Focus 22

Here are the specs of the Cartoni Focus 22:

Feature	Cartoni Focus 22
Tilt Range (Degree)	+/-90
Plate Size/Range	Euro Plate
Bowl Size (Diameter)	100mm, also in 150mm
Temperature Range (Celsius)	-40 to 60 C
Lowest Weight	3 kg
Highest Weight	22 kg
Weight of head	3.9 kg
Counterbalance steps	Continuous, Numerical counterbalance
Pan steps	Continuous, Labyrinth system
Tilt steps	Continuous, Labyrinth system
Bubble level	Illuminated
Quick release system	Slide load, Sachtler Touch-and-Go
Pan Range (Degree)	360
Warranty/Returns	5-year warranty on registration

The Cartoni Focus 22 fluid head is only 3.9 kg in weight. It can load rigs that weigh 3 kg to 22 kg. It has a continuous spring-loaded counterbalance steps and continuous adjustable tilt and pan drags.

The Cartoni Focus 22 is specifically designed for cinematographers who film with high loads but needs a light fluid head head. Cartoni really makes great value-for-money fluid heads.

So far it’s been a Cartoni-Sachtler show. Now it’s time to step up.

10 The $10,000 fluid head:
OConnor Ultimate 1040

Here are the specs of the OConnor Ultimate 1040 (Amazon, B&H):

Feature	OConnor Ultimate 1040
Tilt Range (Degree)	+/-90
Plate Size/Range	Large Euro Plate
Bowl Size (Diameter)	100mm, Mitchell, 150mm
Temperature Range (Celsius)	-40 to 60 C
Lowest Weight	0 kg
Highest Weight	20 kg / 23.5 kg
Weight of head	4.8 kg
Counterbalance steps	Continuous
Pan steps	Continuous
Tilt steps	Continuous
Bubble level	Illuminated
Quick release system	Slide load, Sachtler Touch-and-Go
Pan Range (Degree)	360
Warranty/Returns	3-year warranty on registration

The OConnor Ultimate 1040 (Amazon, B&H) has to be my dream fluid head.

It is an upgrade to the popular 1030D and is heavier at around 4.8 kg. In return it can carry 0 to 23.5 kg, which is way more than the 1030D. It has a continuous counterbalance system and continuous pan and tilt steps.

The OConnor Ultimate 1040 (Amazon, B&H) can be the best fluid head for operators to transit from lighter to heavier cameras. It can tilt 90º both ways and can take almost any rig you can throw at it. If you’re filming a lot with telephoto lenses in windy conditions, this is the fluid head to get.

Thousands of operators swear by the ‘OConnor feel’. There’s a reason for it!

11 The $15,000 fluid head:
OConnor Ultimate 2560

The OConnor Ultimate 2560 is the baby brother to the industry workhorse, the OConnor Ultimate 2575D. Nothing beats these two. They are the gold standard by which all other fluid heads are measured.

Feature	OConnor Ultimate 2560
Tilt Range (Degree)	+/-90
Plate Size/Range	Large Euro Plate
Bowl Size (Diameter)	Mitchell, 150mm
Temperature Range (Celsius)	-40 to 60 C
Lowest Weight	n/a
Highest Weight	40.72 kg
Weight of head	7.3 kg
Counterbalance steps	Continuous
Pan steps	Continuous
Tilt steps	Continuous
Bubble level	Illuminated
Quick release system	Slide load, Sachtler Touch-and-Go
Pan Range (Degree)	360
Warranty/Returns	3-year warranty on registration

12 The $25,000 fluid head:

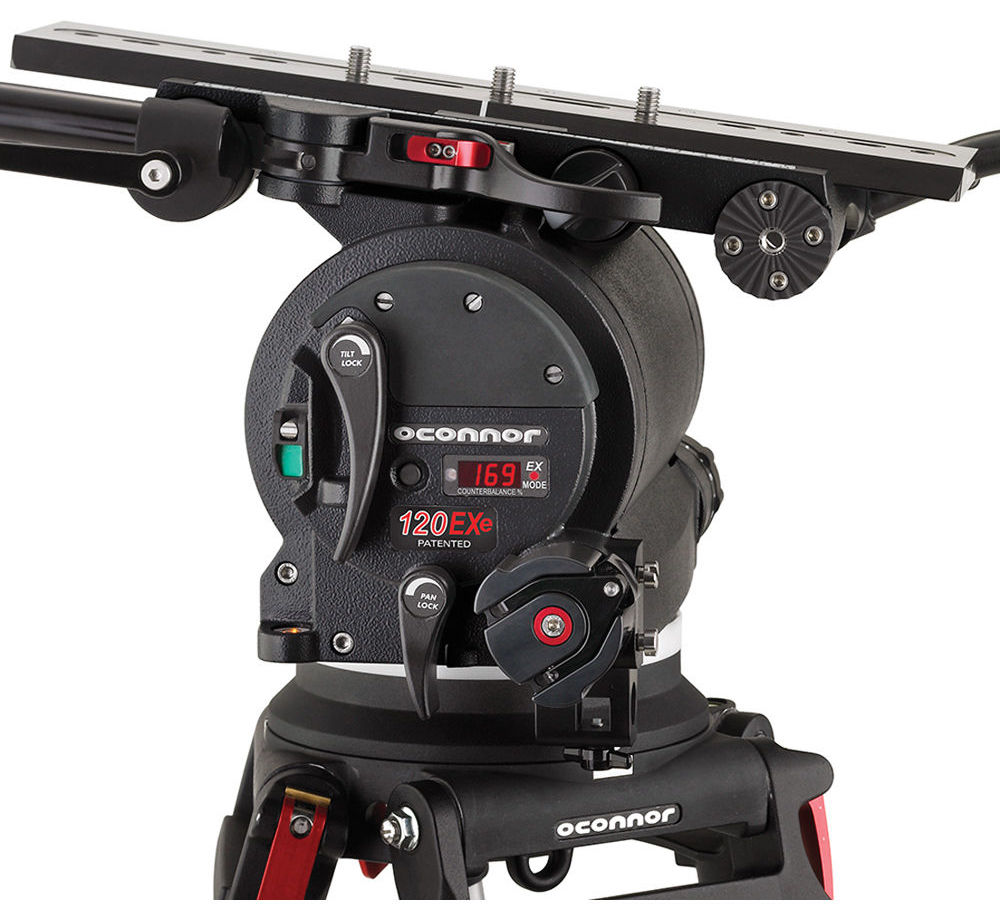

OConnor 120EX/120EXe

Here are the specs of the OConnor 120EX range:

Feature	OConnor 120EX and 120EXe
Tilt Range (Degree)	+/-90
Plate Size/Range	120 mm Euro Plate, ARRI Dovetail Plate, OConnor Plate, Panavision Dovetail Plate
Bowl Size (Diameter)	Mitchell base
Temperature Range (Celsius)	-40 to 60 C
Lowest Weight	14 kg
Highest Weight	109 kg
Weight of head	15.5 kg
Counterbalance steps	Continuous
Pan steps	8 + 0
Tilt steps	Continuous + 0
Bubble level	Illuminated
Quick release system	Top Load
Pan Range (Degree)	360
Warranty/Returns	2-year warranty on registration

The OConnor 120EX weighs around 15.5 kg and has a maximum capacity of up to 109 kg. The minimal weight begins from 14 kg. It has continuous counterbalance. It has a 8 + 0 pan steps and continuous + 0 tilt steps. The full tilt range is ±90° with payloads between 14–54 kg.

The only difference between the EX and EXe is the latter digitally encodes pan and tilt position information for VFX and mocap work.

That’s it. I hope this list will help you find a great fluid head for your tripod system that will last you decades.

If there are options I’ve left out you feel are important, please let me know in the comments below.
