What is Video Compression?

What is video compression, why do we need it, and what are the most common kinds of video compression?

What is Video Compression?

Compression is the practice of reducing the number of bits (0s or 1s) in a file. A video file typically can contain more than one type of compression:

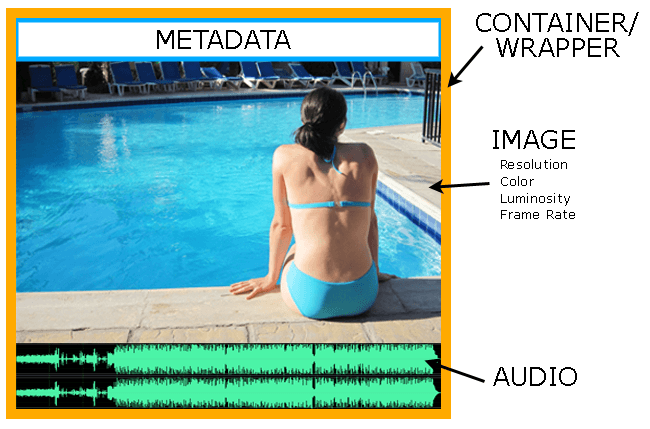

Video File Makeup

Exclusive Bonus: Download your FREE Blueprint: How to make a movie. A complete visual representation + video of the filmmaking process from beginning to end.

A typical video file contains image, audio and metadata; in addition to the file wrapper or container. You could compress each of these properties, since all of them are made up of 0s and 1s.

Why do we need Video Compression?

One word: Bandwidth. Video is transmitted as electrical signals, as we’ve seen here. These signals usually move around via air (radiowaves, microwaves, etc.) or via cables (HD-SDI, HDMI, etc.).

For simplicity’s sake, it might be useful to think of cables as pipes. A pipe has a limited diameter, and there’s only so much water that can flow through it, no matter how much force you apply. The limit of a broadcast system is called its bandwidth. Signals are like water, there’s only so much you can push through.

In the case of wireless transmission, the ‘pipe’ is called the spectrum, something like an invisible bowling alley, where only a limited number of frequencies can travel (one per alley). The governments of each country limit the spectrum within their territory. The point is, even though birds have the freedom to fly any which way, your video in the air isn’t allowed that freedom. Or at least, there’s a cost associated with ‘freedom’.

On a fundamental level, you can understand what happens when everyone wants a piece of a pipe. Ask yourself: How many people can drink from the same straw at the same time? It’s the same with bandwidth.

To get more, everyone must pay more. Since this is not how humans usually deal with their money, bandwidth is distributed according to the auction methodology. Pay more, get more. Pay less, get less. Pay nothing, and be at the mercy of everyone else.

Video compression allows the efficient utilization of bandwidth by reducing file sizes. What if you could shrink a bowling ball into a marble without ‘changing’ its utility? Each alley becomes smaller, and  you can fit more alleys in the same arena, right?

Bowling alley

What if you could look at subsequent bowling balls and compress them into one single bowling ball? Weird? That’s what interframe compression does. To know more about interframe and intraframe compression, click here.

What are the ways in which video can be compressed?

Some of the ways in which video is compressed, but are not very obvious are:

Out of these, when we think of video compression we always tend to think of data compression, and forget every other type. Data compression is the power of algorithms to find ‘patterns’ in the video to ‘reduce’ duplicates. To know more about data compression, check out Lossy vs Lossless compression.

What are the most popular Compression standards?

It might seem strange, but there are really only three major worldwide standards for delivery:

  • MPEG-2 (DVD)
  • JPEG 2000 (Digital Cinema)
  • H.264 (Everything else)

Here’s a table of the most common display formats and the data compression applied (When not mentioned, I mean 1080p):

Redray 4K Player20RED
Canon 5D Mark III All-I91H.264
2K/4K DCI250JPEG 2000
Blackmagic Cinema Camera1200CinemaDNG
16-bit TIFF Sequence3736Uncompressed

Compare this with the average internet bandwidth of the world, which is less than 3 Mbps, and you can see it’s a mind-boggling chore to fit all that data into existing infrastructure to please everyone. Actually, as you can see from the quality of video on Youtube, Vimeo or Broadcast television, it doesn’t please anyone who has already seen the original.

48 Mbps Blu-ray (50 Mbps Interframe, 100 Mbps Intraframe) seems to be the minimum acceptable compression level for video. Anything lower than these figures will be very visible in the final product.

What’s your take on video compression? Do you find it odd that as resolution increases (1080p, 4K, etc) the compression is more? Won’t that lead to a worse image? If yes, why do manufacturers charge more for it?
